Alpine Electronics BBX-F1200 4 Channel Amplifier

High Power, Great Value
This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.
High Pass and Low Pass Filters
These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.
Bass EQ for Best Bass
Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.
Install

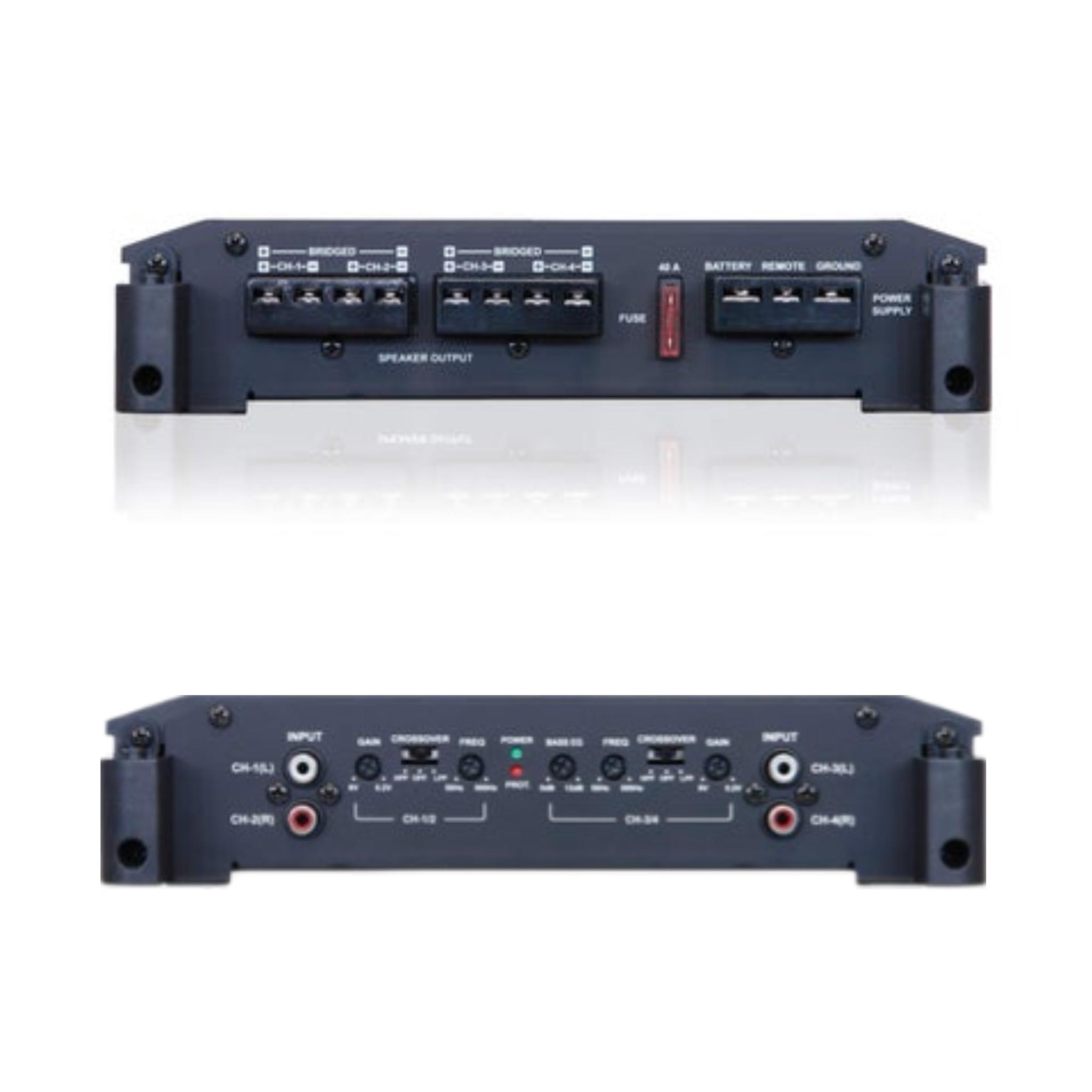

Terminal Layout: Two-Sided
Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
General
Amplifier Type: Class-A/B
Channel Design: 4/3/2 Channel
Thermal Control: Thermal Management Control
Power Supply: DC-DC PWM Power Supply
Power Supply Design: MOSFET Power
Current Protection: Over-Current, Over-Voltage and Thermal Protection
Crossover: Variable Low-Pass / High-Pass
Green/red status LED
2 pair RCA pre-inputs
SPECIFICATIONS
Max Power Output Ratings
Total Max Power: 600W
RMS Power Ratings
Per Channel into 4ohms (≤1%THD+N): 4 x 50W
Per Channel into 2ohms (≤1%THD+N): 4 x 70W
Bridged into 4ohms (≤1%THD+N): 2 x 130W
Sound Tuning
Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
1/2 Ch: LP/HP: 50Hz – 500Hz
3/4 Ch: LP/HP: 50Hz – 500Hz
EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB (3/4 Ch only)
Dimensions
Footprint: 330 mm x 52 mm x 240 mm
General
Power Requirements: 14.4 V DC (11 V to 16 V)
Input Sensitivity: 0.2 - 8.0 V
Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
Speaker Impedance: 4 or 2 Ω
Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
Weight: 2.7 Kg
