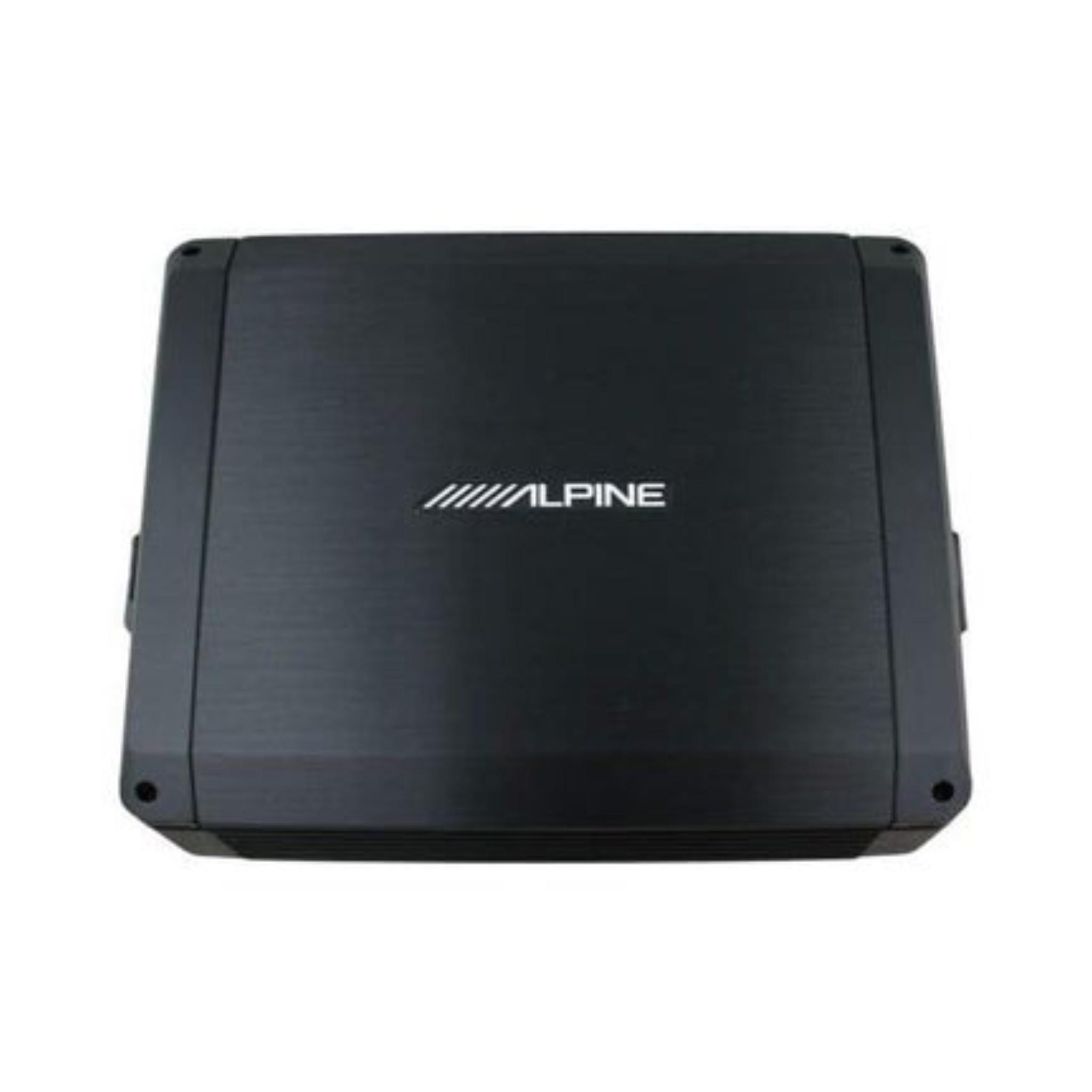

Alpine 2 Channel Amplifier - BBX-T600
Low Prices
Price match guarantee
Guaranteed Fitment.
Always the correct part
In-House Experts.
We know our products
Easy Returns.
Quick & Hassle Free
Description
High Power, Great Value
This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.
High Pass and Low Pass Filters
These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.
Bass EQ for Best Bass
Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.
Install
- Terminal Layout: Two-Sided
- Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
General- Amplifier Type: Class-A/B
- Channel Design: 2/1 Channel
- Thermal Control: Thermal Management Control
- Power Supply: DC-DC PWM Power Supply
- Power Supply Design: MOSFET Power
- Current Protection: Over-Current, Over-Voltage and Thermal Protection
- Crossover: Variable Low-Pass / High-Pass
- Green/red Status LED
- 1 pair RCA pre-inputs
- 1 pair RCA pre-outputs
SPECIFICATIONS
Max Power Output Ratings - Total Max Power: 300W
RMS Power Ratings - Per Channel into 4ohms (≤1%THD+N): 2 x 50W
- Per Channel into 2ohms (≤1%THD+N): 2 x 70W
- Bridged into 4ohms (≤1%THD+N): 1 x 130W
Sound Tuning - Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
- 1/2 Ch: LP: 50Hz – 250Hz HP: 80Hz – 1.2kHz
- EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB
Dimensions - Footprint: 250 mm x 52 mm x 240 mm
General - Power Requirements: 14.4 V DC (11 V to 16 V)
- Input Sensitivity: 0.2 - 8.0 V
- Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
- Speaker Impedance: 4 or 2 Ω
- Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
- Weight: 1.9 Kg
Highlights
- •Terminal Layout: Two-Sided
- •Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
- •Amplifier Type: Class-A/B
- •Channel Design: 2/1 Channel
- •Thermal Control: Thermal Management Control
- •Power Supply: DC-DC PWM Power Supply
- •Power Supply Design: MOSFET Power
- •Current Protection: Over-Current, Over-Voltage and Thermal Protection
- •Crossover: Variable Low-Pass / High-Pass Green/red Status LED
