Pioneer TS-WX140DA Compact Series 8" x 5-1/4" - 170 W Max Power - Compact Active Subwoofer
Low Prices
Price match guarantee
Guaranteed Fitment.
Always the correct part
In-House Experts.
We know our products
Easy Returns.
Quick & Hassle Free
Description
EV Optimized
The TS-WX140DA is the perfect addition for more bass in your electric vehicle! With a built-in, high-efficiency 170-watt Class-D amplifier, the maximum current draw is only 4.3 amps max, so you don't have to worry about lower mileage due to your bass addition... and fun! The specially designed honeycomb structure enclosure and Digital Bass Control (Pioneer technology), allows you to increase the performance, producing deep and powerful bass without the typical sacrifice in space.
Powerful Amplified Subwoofer
Combines a built-in 170-watt Class D amplifier, aluminum cone specially designed acoustic suspension enclosure, and Digital Bass Control, a technology developed by Pioneer to tailor frequency response and increase the performance, is compact while producing deep, powerful bass.
Digital Bass Control
Digital Bass Control now provides three selectable listening modes, Deep, Dynamic and Natural, enhancing system optimization and tuning the output to complement various musical styles and vehicle types.
Installation Flexibility
Extremely compact, measuring 11 inches x 7-7/8 inches with a height of only 2-3/4 inches, and is designed to be installed in various sm all, tight spaces. With the ability to fit under seats, behind seats or inside small storage compartments, the features a wide range of vehicle applications. In addition to its compact size, the TS-WX140DA also incorporates a recessed section for connectors & controls, and multi-angle mounting brackets adding to its installation flexibility.
What’s in the Box
- Powered subwoofer
- 10.5" RCA input harness (4-pin Molex plug/2 female RCAs)
- Power harness with 16.5' power and remote turn-on leads and 6' ground wire (3-pin Molex plug)
- 10A ATO fuse in fuse holder (installed on power wire)

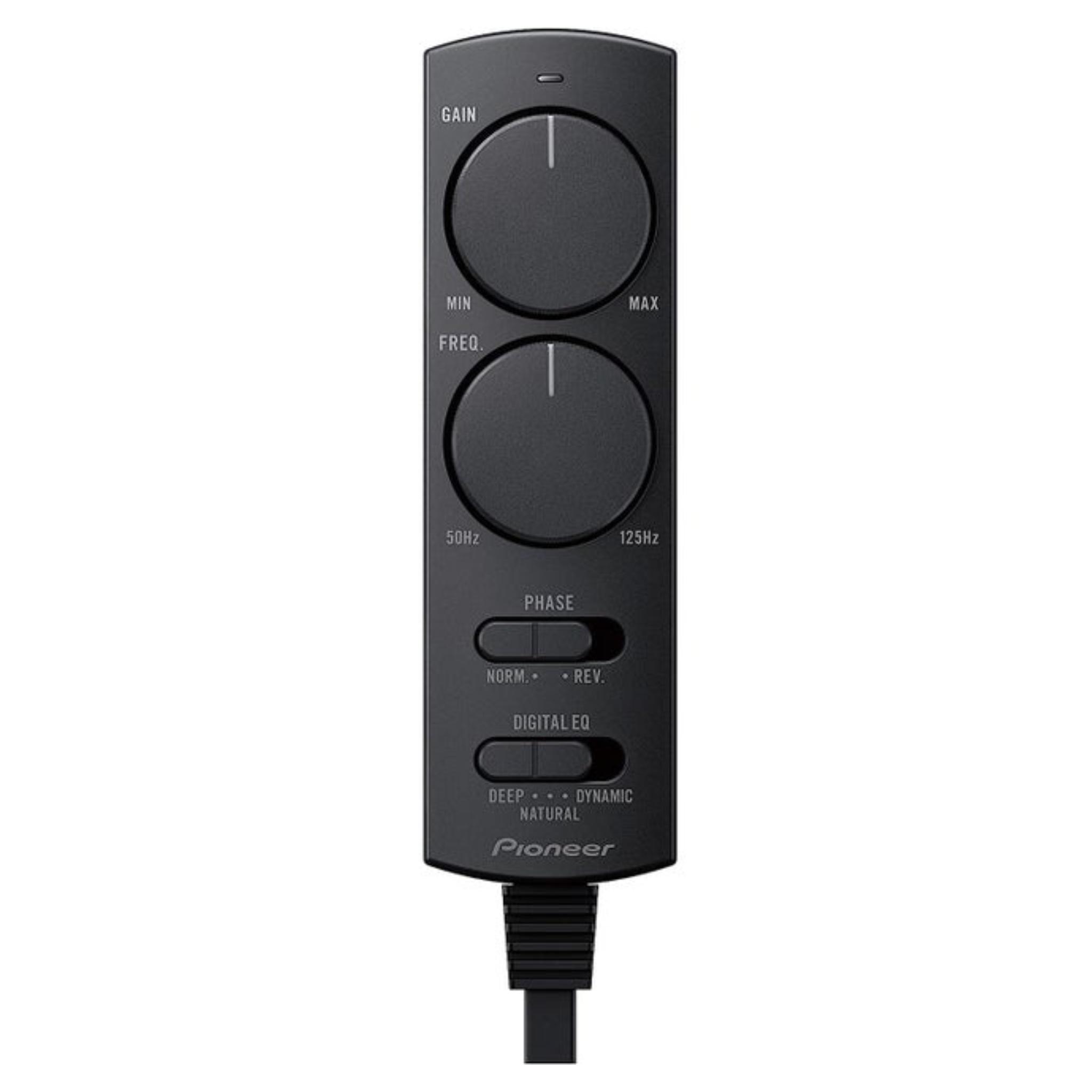

- Wired Digital Bass Control with attached 16.25' cable (RJ-45 plug)
- 2 Mounting feet
- Cable clamp
- 2 Self-tapping screws (M5 x 18mm)
- 2 Machine screws (M5 x 14mm)
- 2 Machine screws (M3 x 8mm)
- Adhesive backed hook-and-loop pad
- Instruction Manual
Features
- •Built-in 170 W Max (50 W RMS) Class D amplifier
- •8" x 5-1/4" Rectangular Subwoofer (7" woofer effective surface area)
- •Pioneer DIGITAL BASS CONTROL digitally matches the subwoofer output to your listening preference and vehicle interior
- •Compact enclosure for installation flexibility (11" W x 7.87" D x 2.76" H)
- •EV optimized - maximum current consumption only 4.3 amps
